PA 40

PA 40

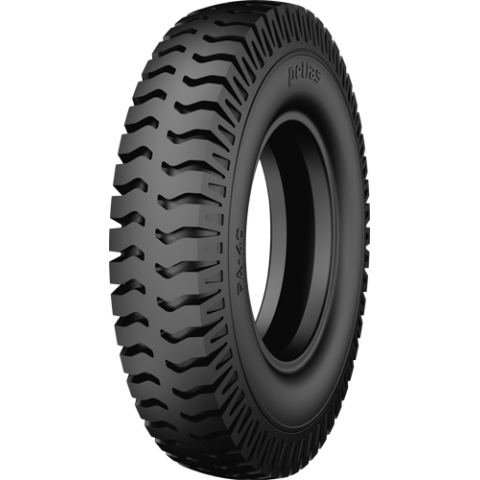

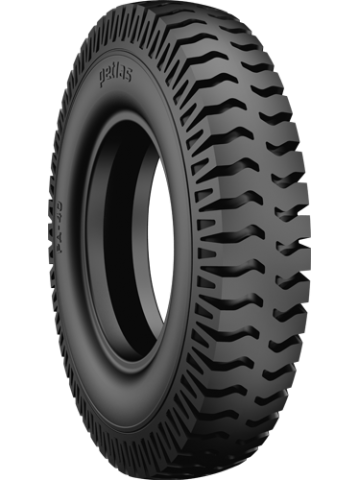

Bus – Truck Diagonal Tire With Wide Base And Modern Tread Pattern

It is wide base provides long life, traction and road holding capacity.It is durable and has long life due to its powerful nylon cord body.The possibility for use on both the front and on the rear axles have been provided with its special shoulder design and so that irregular wear is avoided.

Utimate durability with strong nylon cord and carcass structure

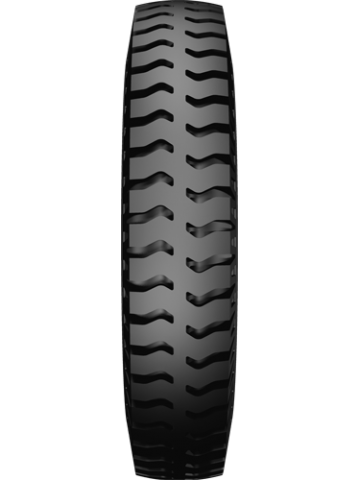

Deep channels on the shoulders and round tread in the middle of the patter provide long wear life and maximum traction
Complete grip property provides balanced drive and resistance agaist lateral slide

Official Website Contact Us

TIRE SIZE	PR	TT/TL	LOAD INDEX	SPEED SYMBOL	LOAD CAPACITY (kg)		SPEED LIMIT (km/h)	INFLATING PRESSURE (psi)	RIM		INFLATED DIMENSIONS
TIRE SIZE	PR	TT/TL	LOAD INDEX	SPEED SYMBOL	2 wheeled maximum load per axle (kg)	4 wheeled maximum load per axle (kg)	SPEED LIMIT (km/h)	INFLATING PRESSURE (psi)	RECOM. (INCHES)	PERMITTED (INCHES)	Section Width Min-Max	OUTER DIAMETER (MM)
9.00-20	14	TT	140/137	J	5000	9200	100	105	7.0, B7.0, 7.0T	6,00T, 6.5, B6.5, 6.5T, 7.33V, 7.5, B7.5, 7.5V	256	1023
10.00-20	16	TT	146/143	J	6000	10900	100	116	7.5, B7.5, 7.5V	6,00T, 7.0, B7.0, 7.0T, 7.33V, 8.0, B8.0, 8.0V	275	1060
11.00-20	16	TT	149/145	J	6500	11600	100	119	8.0, B8.0, 8.0V	7.33V, 7.5, B7.5, 7.5V, 8.37V 8.5, 135.5, 8.5V, 8.50V, 9.00V	291	1098
12.00-20	18	TT	154/149	J	7500	13000	100	123	8.5, B8.5, 8.5V	7.33V, 8.0, 8.0V, B8.0, 8.37V 9.0, 9.0V, 9.00V	312	1135
12.00-24	18	TT	156/153	J	8000	14600	100	113	8.5, B8.5, 8.5V	7.33V, 8.0, 8.0V, B8.0, 8.37V 9.0, 9.0V, 9.00V	312	1239

Season	Summer
Tyre Type	Truck / Bus
