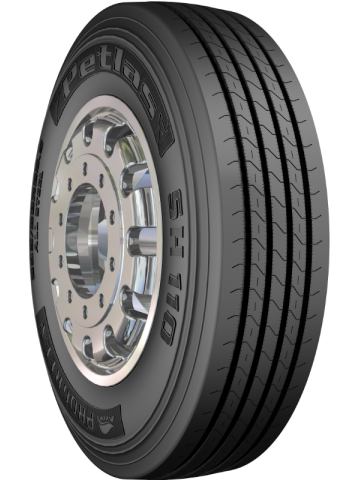

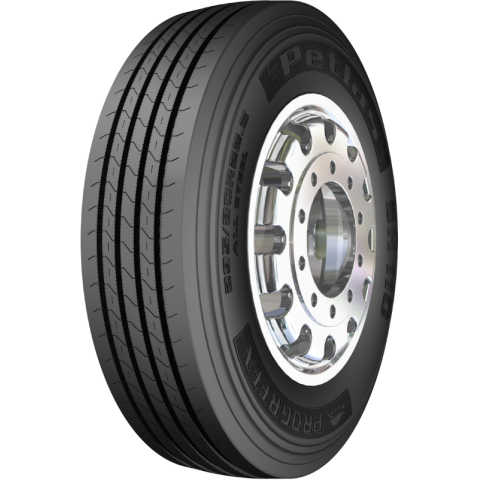

SH 110

Designed And Produced With Low Rolling Resistance, Good Fuel Efficiency, Durability And Long Life

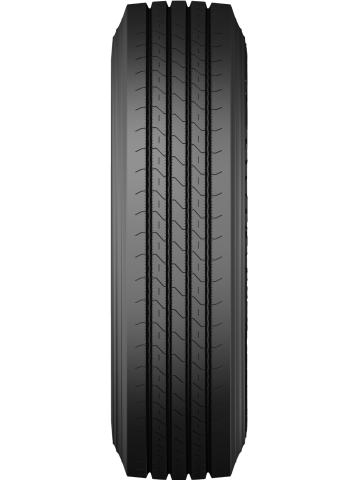

Water discharge and ultimate grip on wet surfaces with five circular blocks and four circular canals

Balanced and comfortable drive with computer designed tire profile and block array

Resistant to irregular wear under heavy loads with optimized tread profile

Long life, perfect grip and fuel consumption with special tread design and strong carcass structure

Compatible with retreading with strong carcass structure

TIRE SIZE	PR	TT/TL	LOAD INDEX	SPEED SYMBOL	LOAD CAPACITY (kg)		SPEED LIMIT (km/h)	INFLATING PRESSURE (psi)	RIM		INFLATED DIMENSIONS
TIRE SIZE	PR	TT/TL	LOAD INDEX	SPEED SYMBOL	2 wheeled maximum load per axle (kg)	4 wheeled maximum load per axle (kg)	SPEED LIMIT (km/h)	INFLATING PRESSURE (psi)	RECOM. (INCHES)	PERMITTED (INCHES)	Section Width Min-Max	OUTER DIAMETER (MM)
295/80R22.5	16	TL	152/148	M	7100	12600	130	125	9.00	8.25	301	1055
315/80R22.5	18	TL	154/150	M	7500	13400	130	120	9.00	9.75	312	1080
315/80R22.5	18	TL	156/150	L	8000	13400	120	123	9.00	9.75	312	1080

Season	Summer
Tyre Type	Truck / Bus
