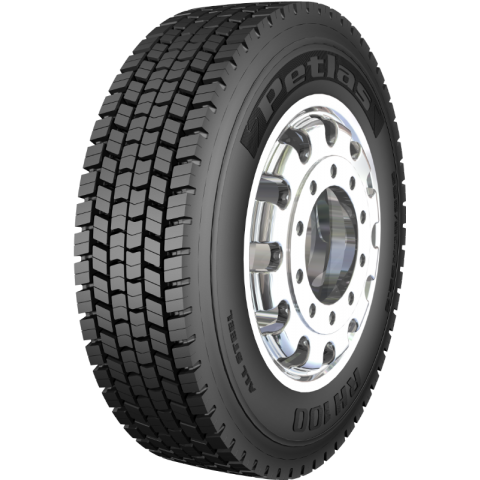

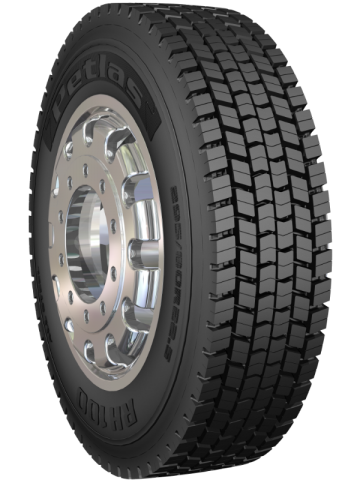

RH 100

RH 100

Designed And Produced With Low Rolling Resistance, Good Fuel Efficiency, Durability And Long Life

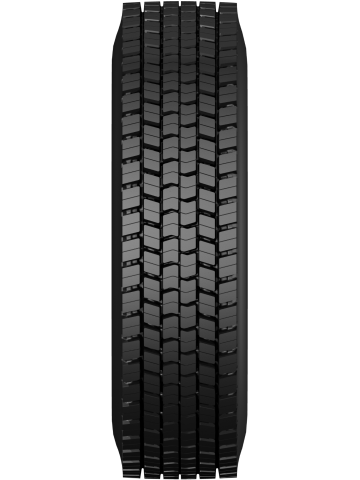

Perfect traction on asphalt surfaces with block pattern structure

Comfortable drive with reinforced blocks and perfectly placed block array

Resistant to irregular wear under heavy loads with optimized tread profile

Perfect grip with special tread mixture and strong carcass structure

Compatible with retreading with strong carcass structure

TIRE SIZE	PR	TT/TL	LOAD INDEX	SPEED SYMBOL	LOAD CAPACITY (kg)		SPEED LIMIT (km/h)	INFLATING PRESSURE (psi)	RIM		INFLATED DIMENSIONS
TIRE SIZE	PR	TT/TL	LOAD INDEX	SPEED SYMBOL	2 wheeled maximum load per axle (kg)	4 wheeled maximum load per axle (kg)	SPEED LIMIT (km/h)	INFLATING PRESSURE (psi)	RECOM. (INCHES)	PERMITTED (INCHES)	Section Width Min-Max	OUTER DIAMETER (MM)
11R22.5M+S	16	TL	148/145	L	6300	11600	130	123	8.25	7.50	278.5	1058
12R22.5M+S	16	TL	152/148	M	7100	12600	130	125	9.00	8.25	300	1096
285/70R19.5M+S	16	TL	146/144	L	6000	11200	120	125	8,25	7.5 , 9.00	287	897.5
285/70R19.5M+S	16	TL	140/137	M	5000	9200	130	105	8,25	7.5 , 9.00	287	897.5
315/80R22.5M+S	18	TL	156/150	M	8000	13400	120	120	9.00	9.75	312	1096
315/80R22.5M+S	18	TL	154/150	M	7500	13400	130	120	9.00	9.75	312	1096
315/80R22.5M+S	18	TL	154/150	M	7500	13400	130	120	9.00	9.75	312	1096

Season	Summer
Tyre Type	Truck / Bus
